Process Simulate
Plan, simulate and validate human tasks, robotics processes and automation during the entire product development lifecycle from concept, engineering and commissioning to production and continuous improvement.
제조 프로세스 시뮬레이션이란?
Tecnomatix Process Simulate는 3D 환경에서 제조 공정 검증을 위한 디지털 제조 솔루션입니다. Process Simulate는 제조 조직이 신제품 출시 라이프사이클 전반에 걸쳐 제조 개념을 사전에 실질적으로 검증할 수 있도록 함으로써 시장 출시 속도를 높이는 주요 요소입니다. 제품 및 리소스의 3D 데이터를 활용할 수 있는 기능은 복잡한 제조 프로세스의 가상 검증, 최적화 및 커미셔닝을 촉진하여 출시 시간을 단축하고 생산 품질을 향상시킵니다.
Verify manufacturing processes in 3D environments
Get to market faster by allowing your manufacturing engineering organization to virtually validate manufacturing concepts upfront and throughout the lifecycle of new product introductions.
Leverage 3D models of products and resources to facilitate simulation, validation, optimization and commissioning of complex manufacturing processes involving equipment and people for faster launches and higher production quality.
Explore Process Simulate apps
Learn more about the dedicated tools available that make your modeling and simulation tasks easier and that provide additional value to your Process Simulate investment.

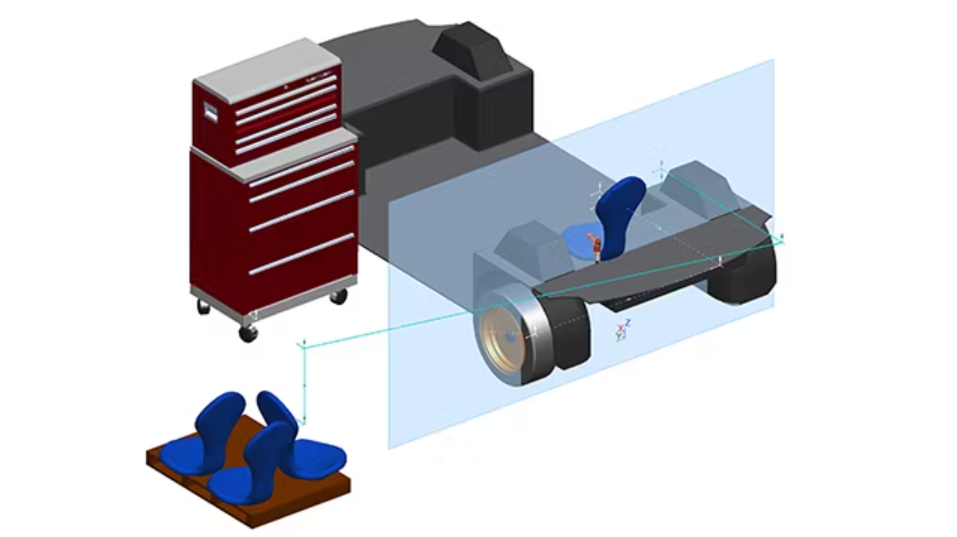

Assembler
Design, analyze and verify product assembly and disassembly processes to determine the most efficient, collision-free sequence in the shortest amount of time.
Use Process Simulate Assembler for modeling, dynamic creation and simulation of assembly and disassembly paths and operation sequences, collision detection and clearance assessment, 2D and 3D sectioning and measurement analyses. Select the most suitable tool for the operation, perform virtual clearance tests and collision analysis, and simulate the complete process of the product and the tool together.
Robotics

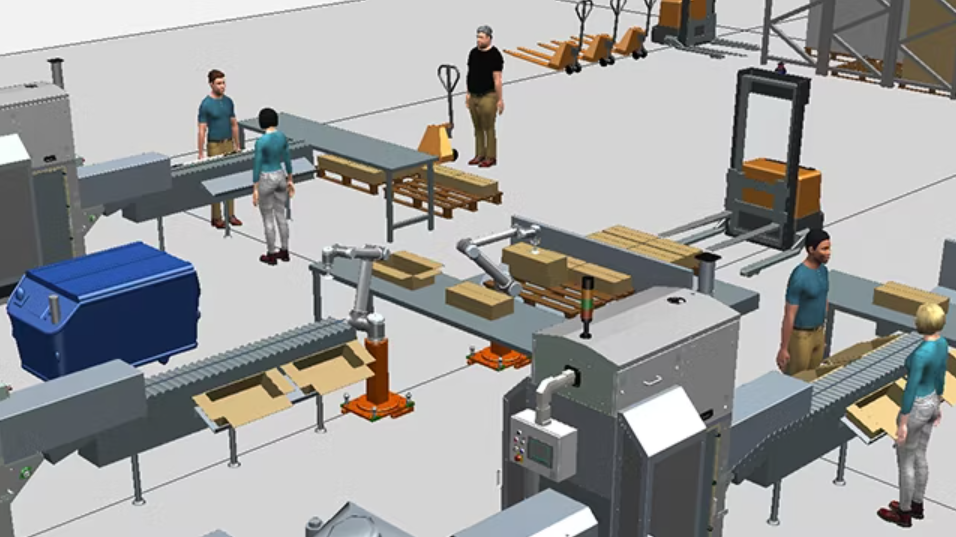

Conduct virtual development, simulation and commissioning of robotic and automated manufacturing systems, including highly automated plants with a variable production mix.
Use Process Simulate Robotics to facilitate collision-free robot motion path planning and simulation, automatic robot placement and reach testing, robotic operation cycle time and energy usage optimization, and simplification of the process for synchronizing multi-robot workstations and zones. Multiple engineering disciplines can use the software to plan and validate manufacturing systems that range from single workstations to complete production lines.

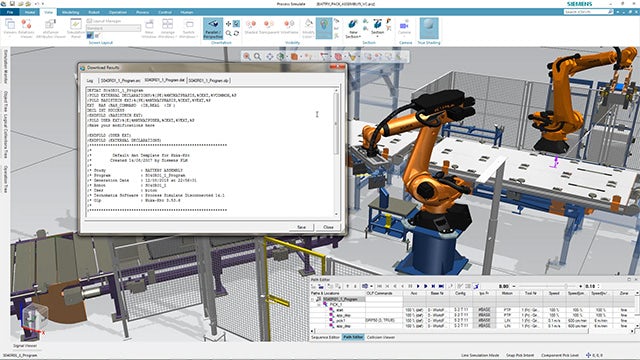

OLP — offline programming
Maintain and optimize robotic processes in a dynamic 3D virtual environment without interrupting existing production.
Use Process Simulate Offline Programming (OLP) for the creation and manipulation of robot-specific target locations, orientation, configuration, motion paths and interference zones. Perform cycle time optimization, configurable motion and OLP command creation and editing, robot calibration, and complete robot program download and upload based on the robot teach pendant interface and the robot controller for all major robot brands.

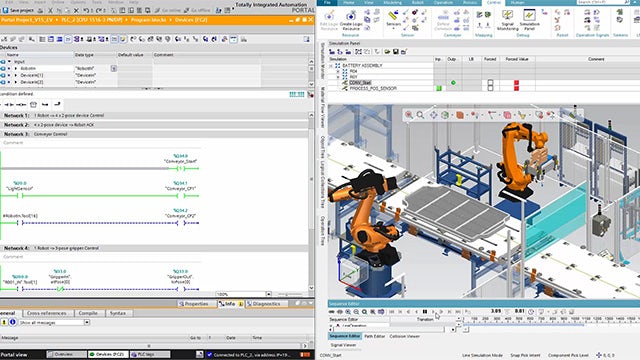

VC Lite — virtual commissioning
Perform virtual commissioning (VC) with offline Process Simulate models, including layout creation, kinematics definitions, simulation and analysis.
Use Process Simulate VC Lite to validate and optimize the build, installation and commissioning (mechanical and electrical) of manufacturing zones or cells containing robots and other automation devices. Simulate real programmable logic controller (PLC) code with the hardware using Siemens TIA Portal and PLCSIM Advanced software or OPC UA software and the actual robot programs, providing the most realistic virtual commissioning environment.

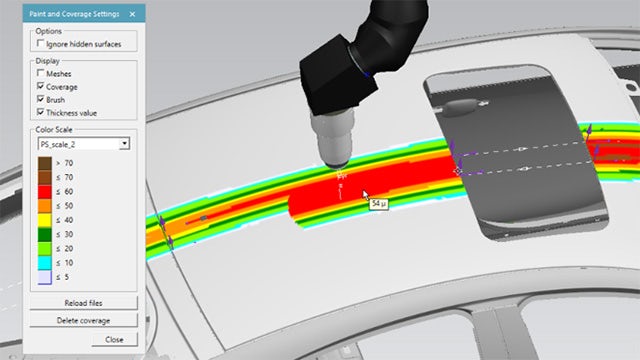

Continuous Manufacturing
Develop robotic manufacturing processes with tools for weld seam creation and continuous path generation for gluing, sealing and spraying operations, full robot motion path simulation and optimization for robot placement, reach and cycle time.
Use Process Simulate Continuous Manufacturing to import weld seams and machining toolpaths for robot path creation, to generate weld seams and continuous motion paths based on curves and geometry recognition, to align path locations based on surface-normal conditions, and to simulate paint and spray coverage and thickness.

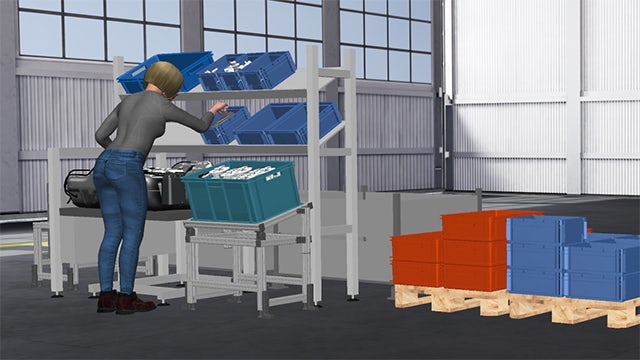

Human
Design, analyze and optimization detailed human operations by scaling virtual human figures to fit any worker population for any task simulation.
Use Process Simulate Human to verify the design of a workstation, ensuring that product parts can be reached, assembled and maintained. Analyze and optimize the cycle time and ergonomics of the human operation and workstation, ensuring a safe process according to industry and corporate standards.
VR Analyze — virtual reality
Load Process Simulate studies into virtual reality (VR) environments to conduct design and process reviews, perform analysis of the scene and simulation and collaborate while fully immersed using VR hardware provided by HTC and HP.
Use Process Simulate VR Analyze to move within the virtual environment, play, pause and reset simulations created in Process Simulate, manipulate robots within the scene, make measurements, and record notes and markups.
